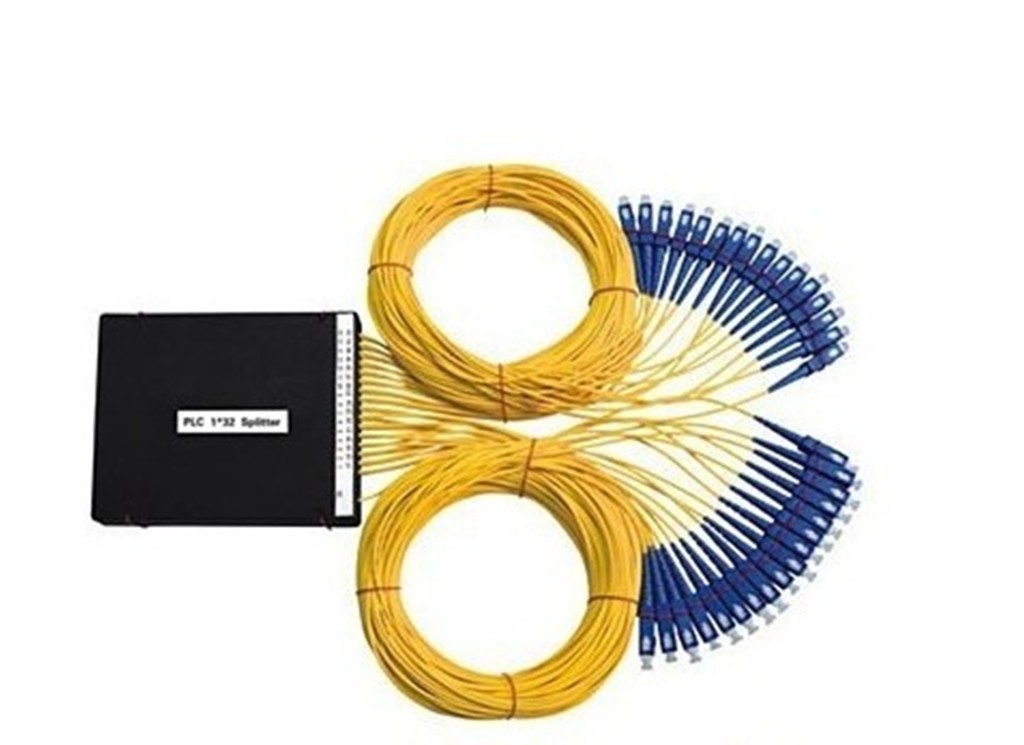

Planar Lightwave Circuits split optical power evenly over the entire single-mode operating window (1260-1650nm). Split counts are available from 1*4 up to 2*32 and input/output fibers can be supplied with or without connectors.
Technique Data
With connector
type
IL (Max)
PDL (Max)
Uniformity (Max)
RL(Min)
1*4
7.4
0.2
0.8
55
1*8
10.5
0.3
0.8
55
1*16
13.8
0.3
1
55
1*32
17.1
0.3
1.5
55
1*64
20.4
0.4
2
55
Without connector
type
IL (Max)
PDL (Max)
Uniformity (Max)
RL(Min)
1*4
7.2
0.2
0.8
55
1*8
10.3
0.3
0.8
55
1*16
13.6
0.3
1
55
1*32
16.9
0.3
1.5
55
1*64
20.2
0.4
2
55
Features
• Full spectrum (1260-1650 nm) operation
• Even split ratio over entire bandwidth
• Compact design
• Low PDL and temperature sensitivity
• High directivity
• Standard operating temperature range -40°C to +85°C
• Fully tested to Telcordia® 1209 and 1221 criteria
