Fiber Optic Adapter
    发布时间: 2020-10-09 15:51

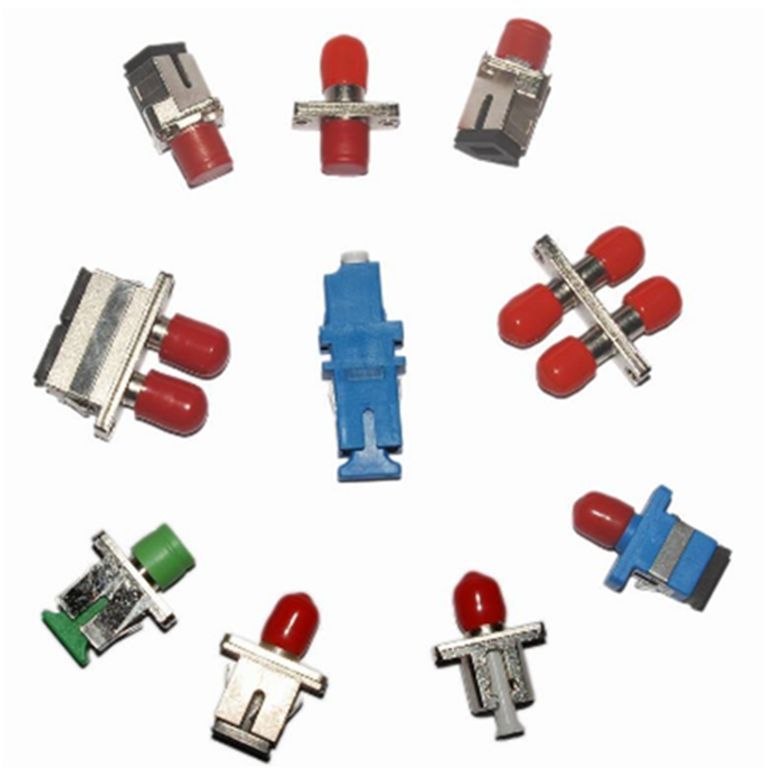

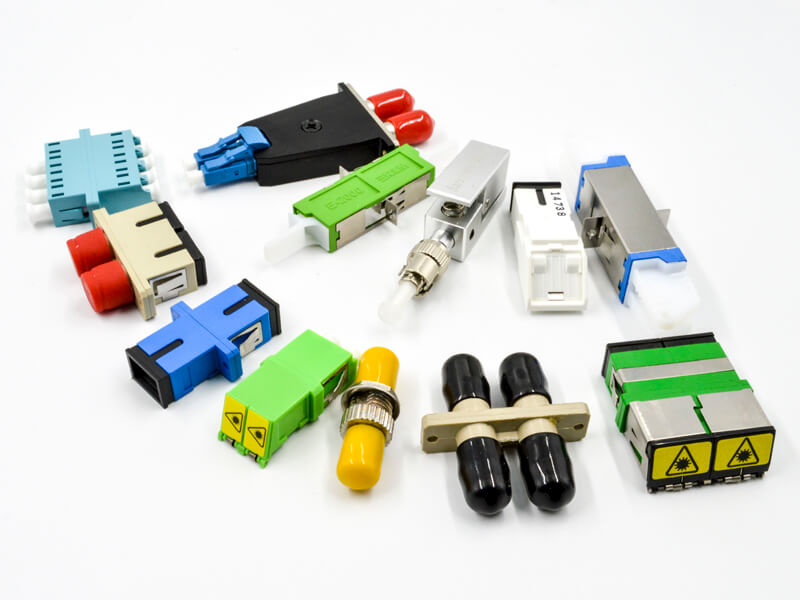

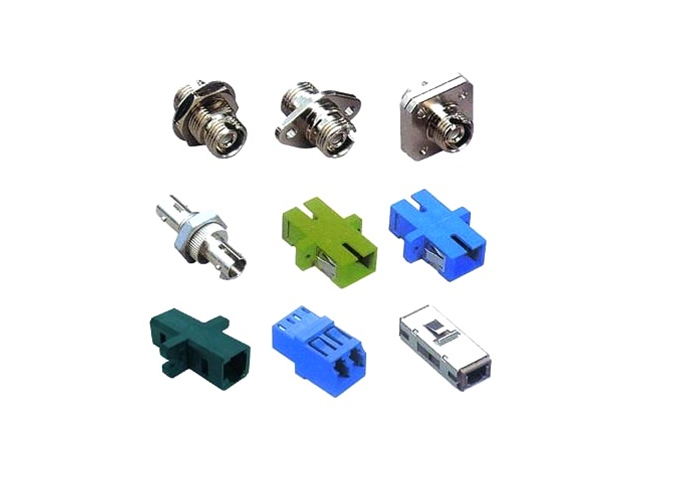

Fiber Optic Adapter


Adapters are used to mate two fiber optic connectors.  They are offered in all major connector interfaces, including SC, FC, ST, LC, MTP and others.  Hybrid adapters are also available for certain connector styles.




Features


·         Used to mate two fiber optic connectors

·         Machine dimension with high precision

·         Excellent repeatability and interchangeability

·         Available in SC, FC, ST, LC, MTP and others

·         Low insertion loss

·         Simplex and duplex versions

·         Hybrid adapters also available



Technique Data

Product type

Insertion Loss

    Tensile Strength

    Insert and Draw Frequency(times)

Operating Temperature (°C)

SC

0.20dB

200-600

1000

-40°C~+75°C

FC

0.20dB

200-600

1000

-40°C~+75°C

LC

0.20dB

200-600

1000

-40°C~+75°C

ST

0.20dB

200-600

1000

-40°C~+75°C

MU

0.20dB

200-600

1000

-40°C~+75°C

MTRJ

0.20dB

200-600

1000

-40°C~+75°C
