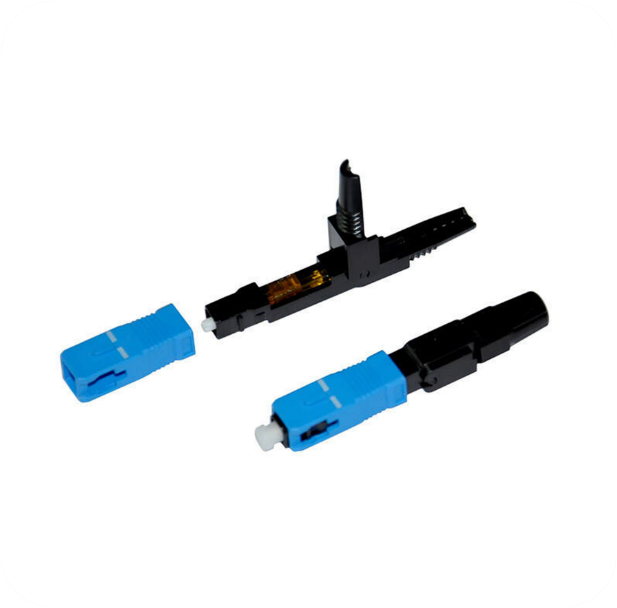

Fast Connectors

Fast connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers. Treeing fast connectors can work steadily in a variety of complex climate environments, easy to operate and have a minimum 10 years lifetime.



1) Straight-through Fast Connectors


Technique Data


Test Environment                    Type SC,FC,LC,ST/UPC
optical cable P2.0*3.0
specification ＜50mm
fiber diameter 125um
material index flammability qualified
RoHS standard
up to standard
optical property index insertion loss ≤0.25dB
return loss ≥45dB
 work environment operating temperature -40°C~+85°C
storage temperature -40°C~+85°C
relative humidity ≤95%(±30°C)
barometric pressure 60kpa~106kpa
mechanical property index repeatability of assembly ≥50 times
fall off(from 1.5m height) ≥10 times
tensile strength ≥40 N
insert and draw frequency ≥500 times


2) Embedded Fast Connectors

Treeing provides embedded connectors of SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC and LC/APC.




Technique Data


Test Environment                type (SC,FC,LC)/UPC (SC,FC,LC)/APC
optical cable P2.0*3.0/Ø3.0/Ø2.0 P2.0*3.0/Ø3.0/Ø2.0
specification ＜60mm/＜50mm ＜60mm/＜50mm
fiber diameter 125um 125um
material index flammability qualified qualified
RoHS standard up to standard up to standard
optical property index insertion loss ≤0.3dB ≤0.3dB
return loss ≥45dB ≥55dB
3D requirement radius of curvature(mm) 10-25 5-15
apex offset(um) ≤50 ≤50
fiber height(mm) -150 -200
 work environment operating temperature -40°C~+85°C -40°C~+85°C
storage temperature -40°C~+85°C -40°C~+85°C
relative humidity ≤95%(±30°C) ≤95%(±30°C)
barometric pressure 60kpa~106kpa 60kpa~106kpa
mechanical property index repeatability of assembly ≥10 times ≥10 times
fall off(from 1.5m height) ≥10 times ≥10 times
tensile strength ≥40N ≥40N

Features

• Pre-stubbed, factory-polished ferrule

• No epoxy required

• Precision mechanical alignment ensures low loss

• Fiber can be reseated

• 3.0 mm, 2.0 mm, and 900 µm boot provided with each connector



Applications

• Premise environments

• Connections at the desk for LAN environments

• Patch panels

• Direct equipment termination

• Fiber to the Subscriber (FTTx)

• Repair/replacement requirements

• Equipment test leads
