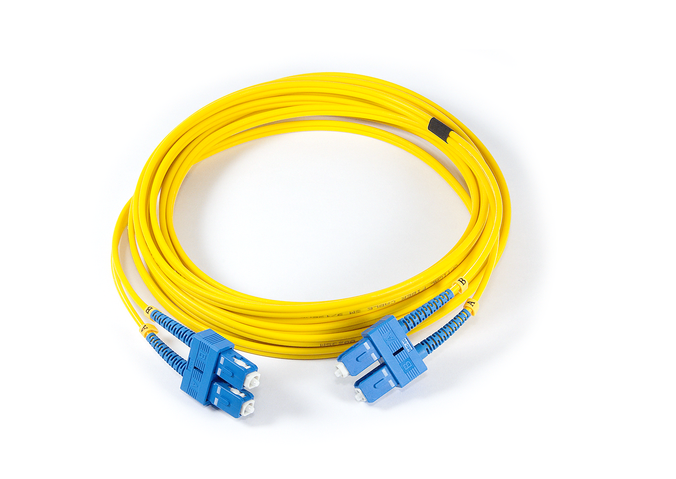

Treeing’s patchcords are available in various fibre types, cable constructions and connector options. All Treeing cable assemblies are video inspected and loss tested using traceable standards-based testing procedures.
Technique Data
Type
SC, FC, LC, ST, MU, MTRJ
surface type
PC
UPC
APC
insertion loss
≤0.20dB
≤0.20dB
≤0.30dB
return loss
≥45 (SM)
≥50 (SM)
≥60 (SM)
repeatability
-
≤0.10dB
-
interchangeability
-
≤0.20dB
-
operating temperature
-40°C~+75°C
storage temperature
-40°C~+75°C
Insert and Draw Frequency
＞1000
Cable type
Ø3.0mm, Ø2.0mm, Ø0.9mm or designated type
industry standard
Telcordia Gr-326-CORE
Features • High-quality, machine-polished connectors for consistent low loss performance • Interferometer tested geometry compliant connectors offer low loss repeatability and intermateability • Standards-based testing practices provide repeatable and traceable results • Video-based inspection ensures connector endfaces are free of defects and contamination • Large stockholding of cable and connectors for fast turnaround of custom assemblies
• Show Less.
Applications • Termination enclosure to equipment patching • Equipment to equipment patching
